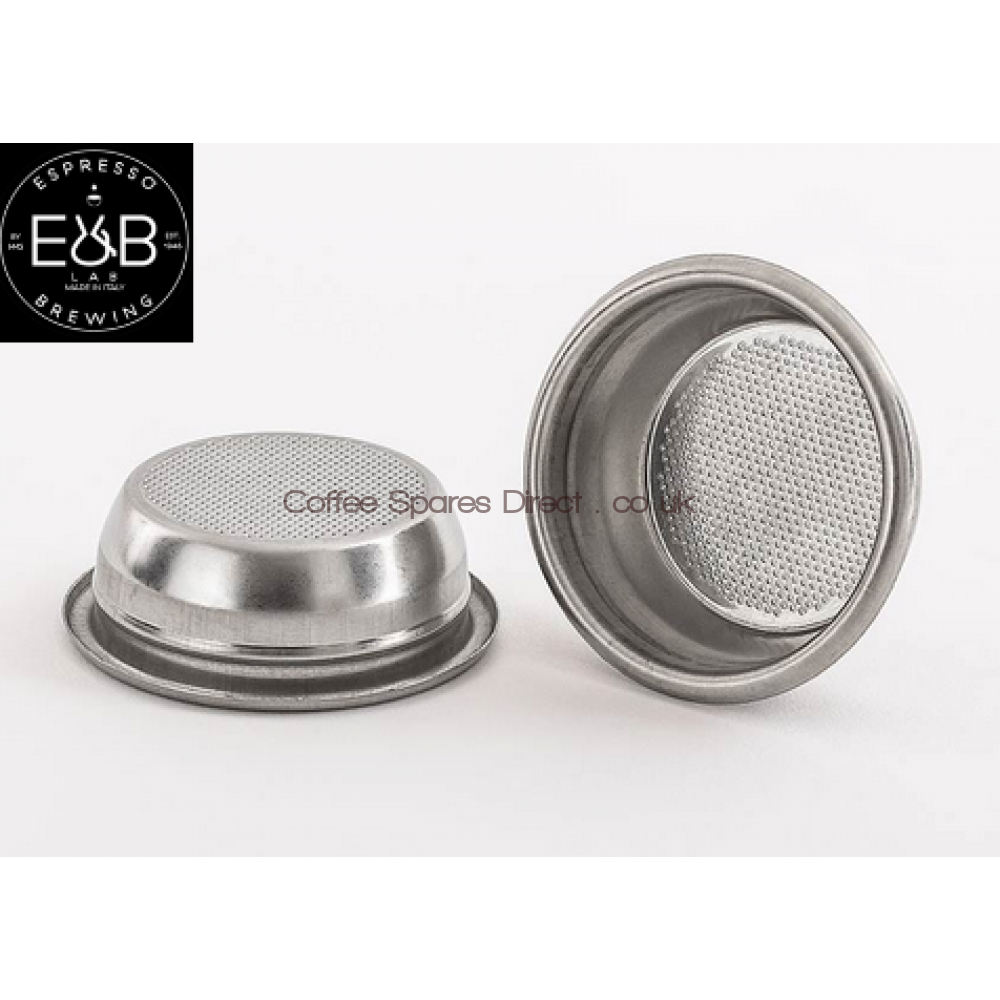

E & B Lab 14g Double Filter Basket 70mm B702TH24.5M

E & B Lab  Double filter basket B702TH24.5M used on E61 groups, competition standard.

The E & B Lab created by  I.M.S. exclusive and patented perforation technology guarantees a circular hole with conical cross section. The inner surface of the cone shaped hole is polished and, as there are no edges or burrs, coffee  oils  slides  out  freely  without  any  obstruction.

 This design  shape was created by I.M.S. to obtain the proper ratio between the base and height of the coffee puck in relation to capacity. The filter is cylindrical with a flat bottom. This shape has been designed to exploit the whole coffee puck, which also facilitates drying and expulsion. PERFORATION I.M.S. perforation is exclusive and patented PERFORATED AREA: Ø 49 mm area optimized in relation to the shape of the filter.

FINISHING TUMBLING: Wet vibro finishing with ceramic inserts and drying with corncob PICKLING: Passivation and preparing of the material ELECTROPOLISHING: smooth surface with unmatched sanitary and non-contaminating qualities is obtained.

External Ridge - none

Cups -  2

Coffee Weight - 14 - 16 Grams

Tamper size - 58 mm CLICK HERE FOR COMPATIBLE TAMPERS

Ridge Diameter - 70 mm

Base Diameter - 60 mm

Height -   24.5 mm

Hole Diameter - 0.30mm

Distance Between Holes - 1.73 mm

Perforated Area - 49 mm

Number of Holes - 715

Base- Flat

Fits a large amount of E61 Style machines
