Spaziale Pressure Switch 1101 Parker PS325

Parker pressure switch for Spaziale Espresso machines

PRESSURE SWITCH PARKER PS325-1C-SX

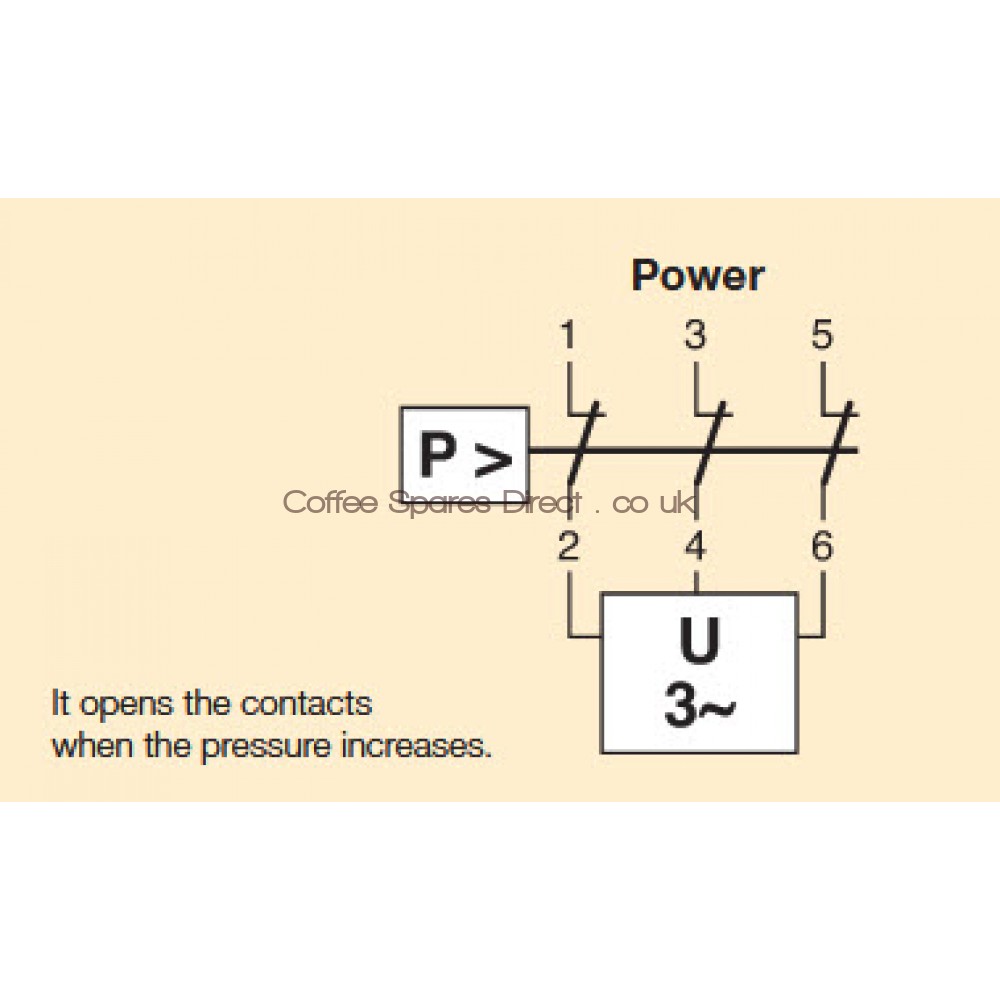

PS325-1C pressure switch has normally closed contacts and a fixed differential. This device operates as three pole switch for the direct command of tree-phases circuits. The pressure switch is equipped of  3 normally closed power contacts (B scheme), when the pressure exceeds the "off" value the contacts will open switching off the electric circuit. Designed for electric boilers of Spaziale coffee machines.
CEI-UL approved
connection ø 1/4"
scale 0.5÷1.4 bar
differential 0.18÷0.03 bar
maximum pressure 2.1 bar
maximum temperature 140°C
Plenum chamber body of forged brass.
Sensible element at double diaphram; reinforced elastomeric with Teflon on diaphram (PTFE) in contacts with the fluid.
Zinc-iridated metal parts.
Self-extinguishing plastic materials V0-1.6.
In-let G 1/4" with biconic connection

Spaziale part number- 1101

Fits the following Spaziale Espresso Machines-
NEW, RAPID, S2, S3, S5, S5-COMPACT, SELETRON, SPAZIO, SUPER 3000

If you are unsure of the part you require please contact us. We offer a large range of espresso machine spares and accessories to include water filters, Barista supplies, tools and cleaning products.
