Marzocco Pressure Switch L270 Parker PS325

Parker pressure switch for La Marzocco Espresso machines

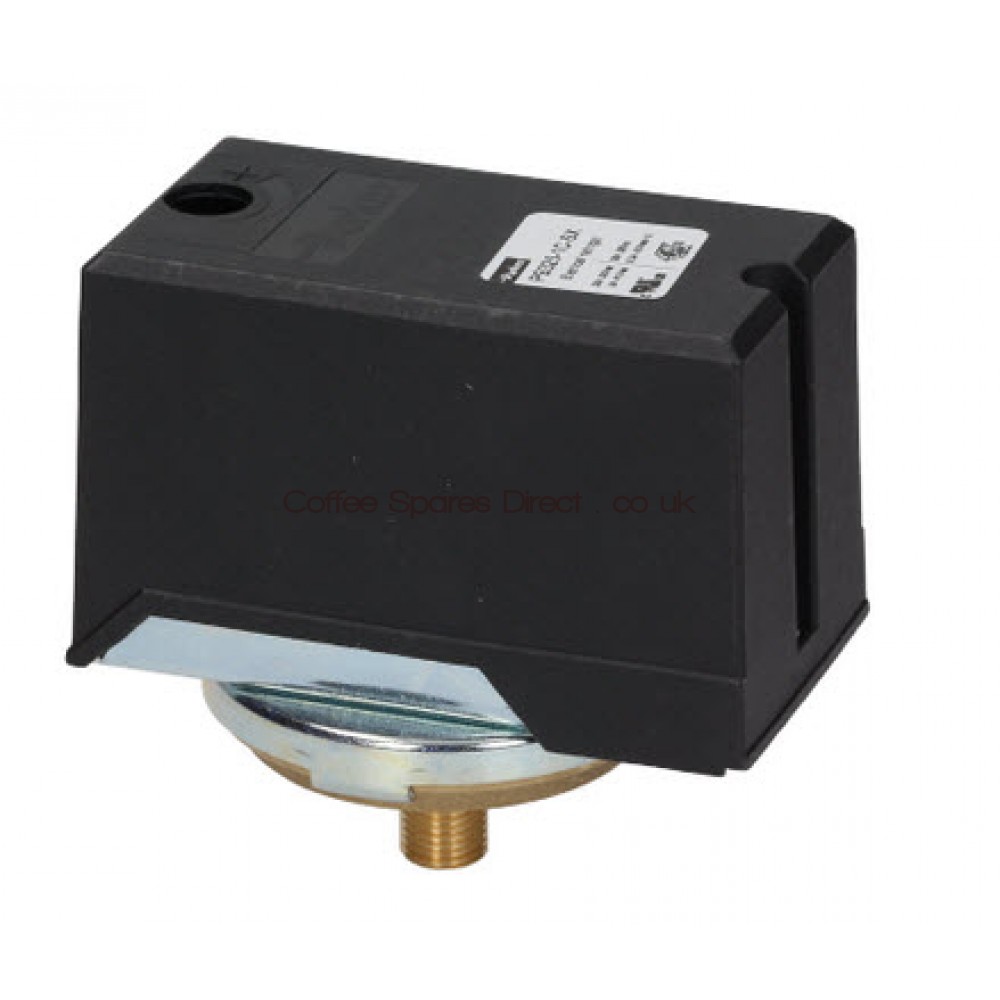

PRESSURE SWITCH PARKER PS325-1C-SX

PS325-1C pressure switch has normally closed contacts and a fixed differential. This device operates as three pole switch for the direct command of tree-phases circuits. The pressure switch is equipped of  3 normally closed power contacts (B scheme), when the pressure exceeds the "off" value the contacts will open switching off the electric circuit. Designed for electric boilers of La Marzocco coffee machines.
CEI-UL approved
connection ø 1/4"
scale 0.5÷1.4 bar
differential 0.18÷0.03 bar
maximum pressure 2.1 bar
maximum temperature 140°C
Plenum chamber body of forged brass.
Sensible element at double diaphragm; reinforced elastomeric with Teflon on diaphragm (PTFE) in contacts with the fluid.
Zinc-iridated metal parts.
Self-extinguishing plastic materials V0-1.6.
In-let G 1/4" with biconic connection

Marzocco part number- L270

Fits the following Marzocco Espresso Machines-
FB70, FB80, GB5, LINEA
