San Marco 108007 Pressure Switch- Sirai P302/6

Sirai pressure switch for San Marco Espresso machines

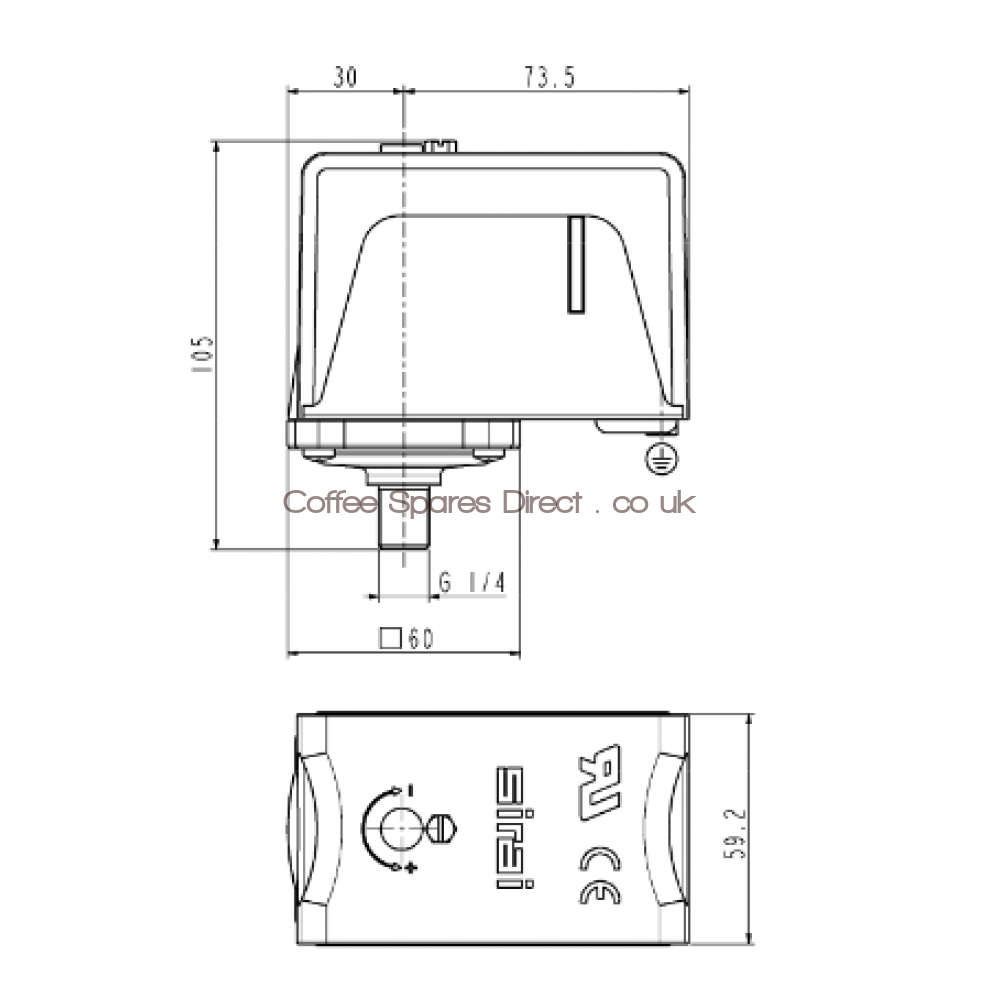

Pressure Switch P302/6 3-POLES 30A

This switch is designed so to open a three-pole electric circuit when the pressure in the system rises and to close it when the pressure decreases. Designed for electric boilers of coffee machines as main application.
In conformity with EU Directive 2011/65/EC (RoHS 2 Directive)CE-SEV-ASE-UL approved
ISO 228 G connection 1/4"M for pipe ø 4x6 mm
adjustable scale 0.5÷1.4 bar
fixed differential 0.15 (± 0.06) bar
fluid temperature max :140°C
max contact load : 220V 7KW (30A)
400V 12KW (30A)

San Marco part numbers

CSCPRE0010

108007

Fits the following San Marco espresso machines

100, 105, 85, 95
